The Tile Roof Solar Mounting System offers a robust, flexible, and internationally trusted solution for solar installations on tile roofs. With its interchangeable hook system, high-grade anodized aluminum rails, and compatibility with multiple panel configurations, this mounting structure is engineered for fast installation, long-term durability, and superior performance across diverse climates and roof designs.
Material:
Aluminum alloy and stainless steelSnow Load:
1.4KN/㎡Wind Load:
60M/SPanel Orientation:
Portrait, LandscapeWarranty:
10 YearsService Life:

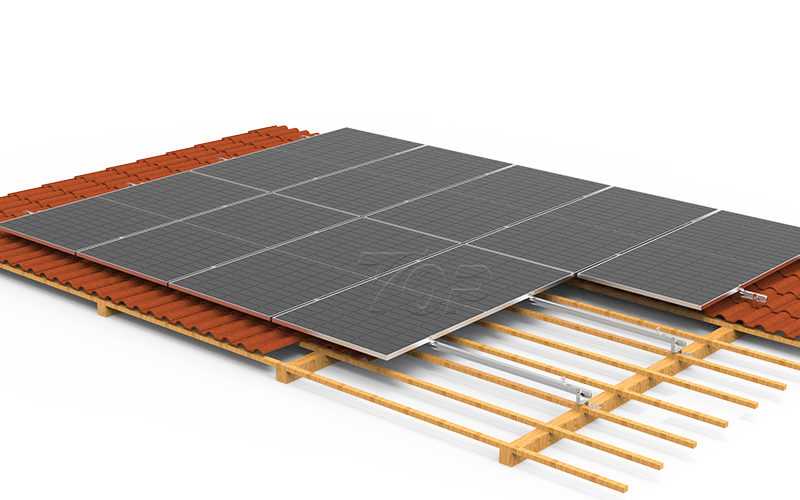

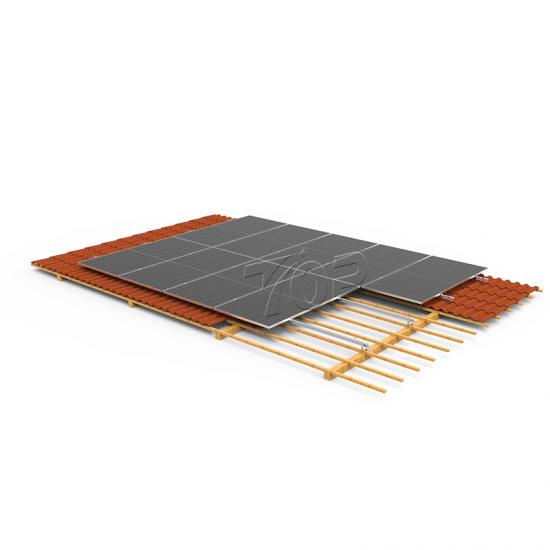

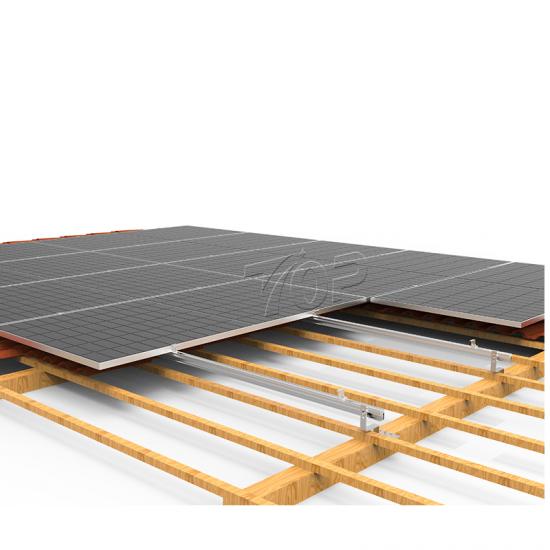

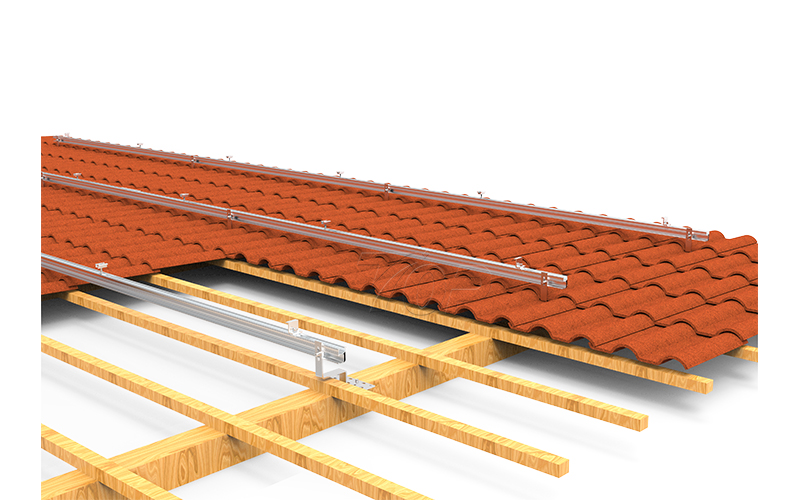

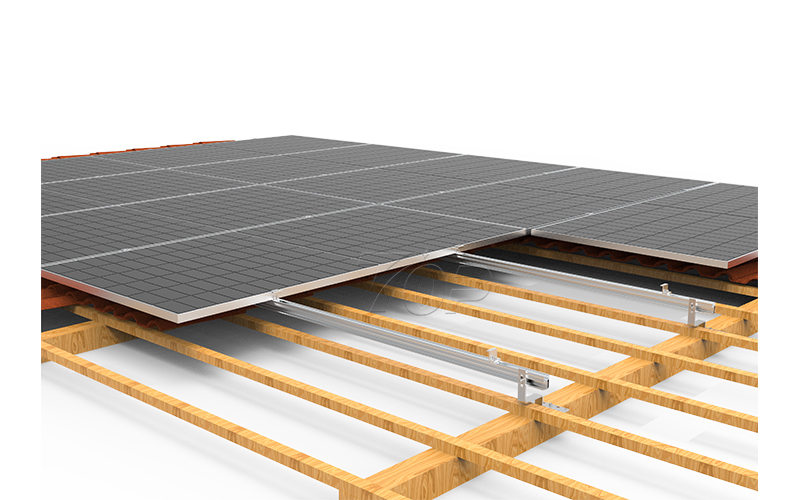

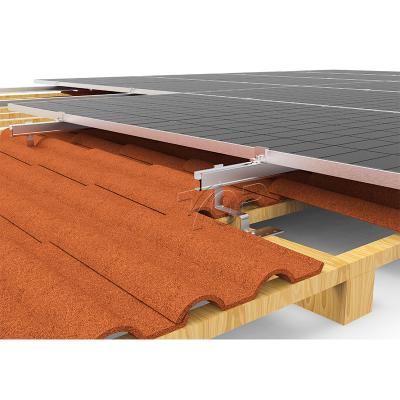

More than 20 YearsThe Tile Roof Mounting System is a highly adaptable and reliable solution for installing solar panels on Spanish tile or other similar tile roofing types, widely used across Europe, North America, and other international markets. The system is designed around universal solar tile roof hooks, combined with B48 anodized aluminum rails, rail splice connectors, and module clamps, ensuring both strength and versatility.
This modular system supports both landscape and portrait orientations of solar panels and is compatible with various module sizes and types. By simply swapping out different tile solar roof hooks, the system can be customized to suit a variety of roof tile structures and shapes, making it a go-to solution for installers handling multiple tile roof styles.
.Product Details
.Product Specifications
| Product Name: | Solar Tile Roof Bracket | Material: | Aluminum alloy 6005-T5 and stainless steel |
| Wind Load: | 1.4KN/㎡ | Snow Load: | 60M/S |
| Warranty: | 10 Years | Service Life: | More than 20 Years |
| Panel Orientation: | Portrait, Landscape | Application: | Spanish tile, Concrete tile, Clay tile |
.Product Features
Universal Tile Hooks: Multiple hook options to match various tile profiles (Spanish, S-tile, flat tile, etc.), ensuring secure installation without compromising roof integrity.
High-Strength Aluminum Rails (B48): Made from anodized 6005-T5 aluminum alloy for corrosion resistance and structural durability.
Flexible Module Orientation: Supports both landscape and portrait mounting of PV modules.
Corrosion Resistance: All components (aluminum and stainless steel) are engineered to withstand harsh weather and coastal environments.

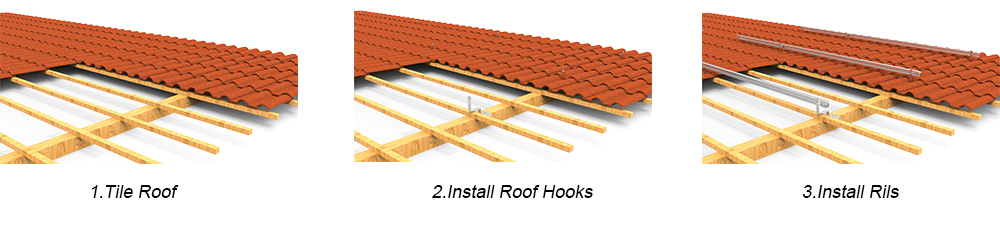

.Product Installation
.Factory
.FAQ
Q1: Is this mounting system compatible with all types of tile roofs?
A1: The system is compatible with most tile roof types, including Spanish tile, S-tile, flat tile, and slate. Different styles of tile hooks can be selected depending on the roof structure.
Q2: Can this system support both portrait and landscape panel layouts?
A2: Yes. The rail and clamp design allows for easy installation in both orientations.
Q3: How is waterproofing managed during hook installation?
A3: Hooks are installed by lifting the tile and fixing to the rafter below. Proper flashing or rubber gaskets can be applied to maintain the roof's waterproof integrity.
Q4: Are the materials suitable for coastal or high-humidity regions?
A4: Absolutely. The rails are made of anodized aluminum, and all bolts and clamps are stainless steel (typically SUS304), providing excellent corrosion resistance.
Q5: Is there a universal hook that fits all tile types?
A5: While the system includes universal hook options, for optimal performance, it's recommended to choose hooks specifically matched to the tile type in use.
