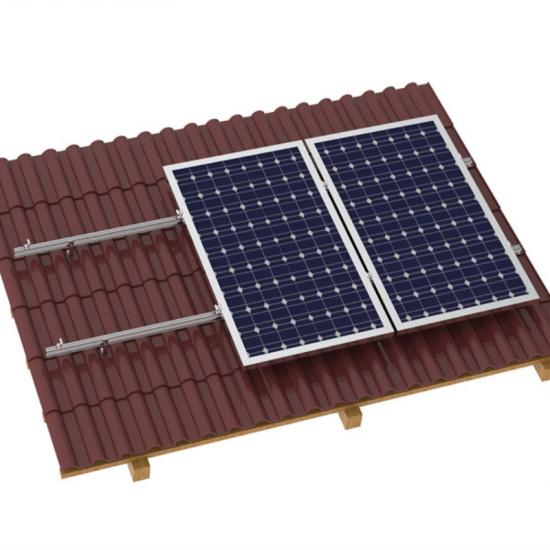

Tile Roof Mounting Bracket, accommodating a wide range of modules framed or frameless, is suitable for most types of roof with different roof hooks.rooftop solar mounting structure
Material:
Aluminum & Stainless SteelSnow Load:
Up to 1.4KN/m2Wind Load:
Up to 216km/hStandard:
AS/NZS, JIS, CEand othersCertification:
CE/ISO9001Tilt Angle:
CustomizedPanel Orientation:
CustomizedWarranty:
10 yearsService Life:
20 yearsShipping Port:

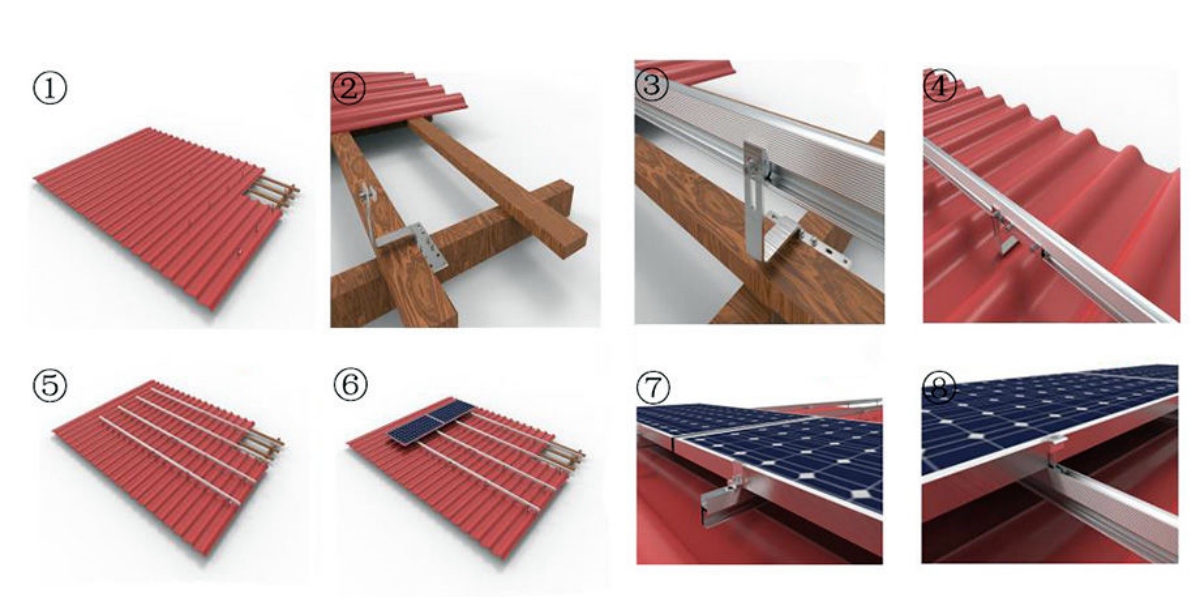

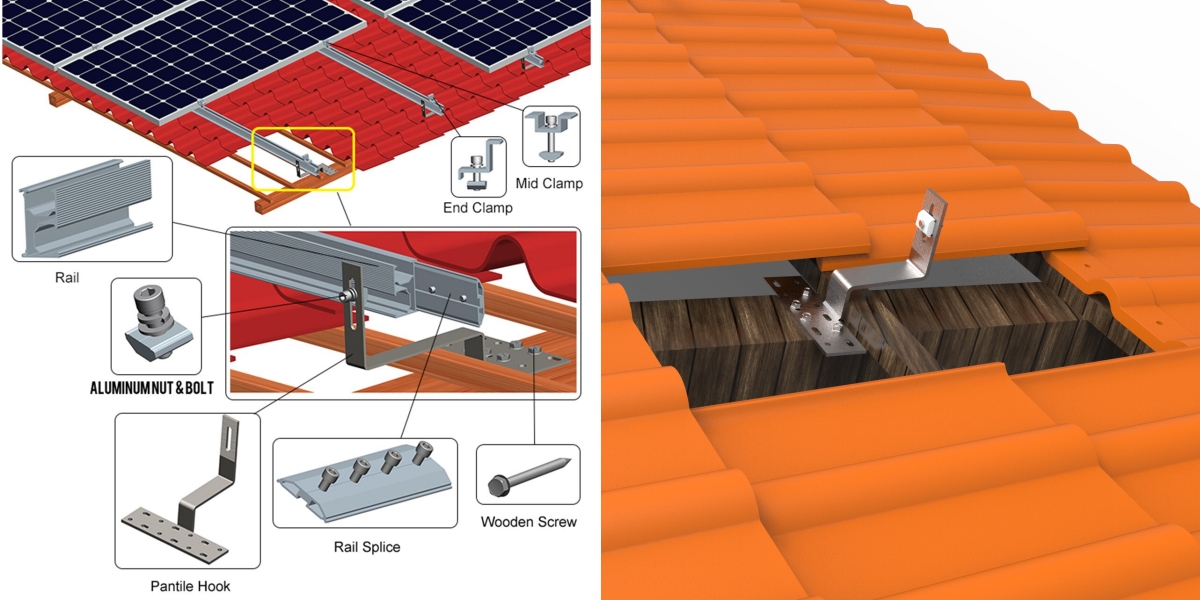

Port of XiamenTile Roof Mounting Bracket, accommodating a wide range of modules framed or frameless, is suitable for most types of roof with different roof hooks.With innovative rail and nut. Tile Roof Mounting Bracket enables significantly fast and easy installation. Only used roof hooks, rails, mid clamps and end clamps.Once installed you can now secure your Solar PV Rails.
Solar Rails Solution

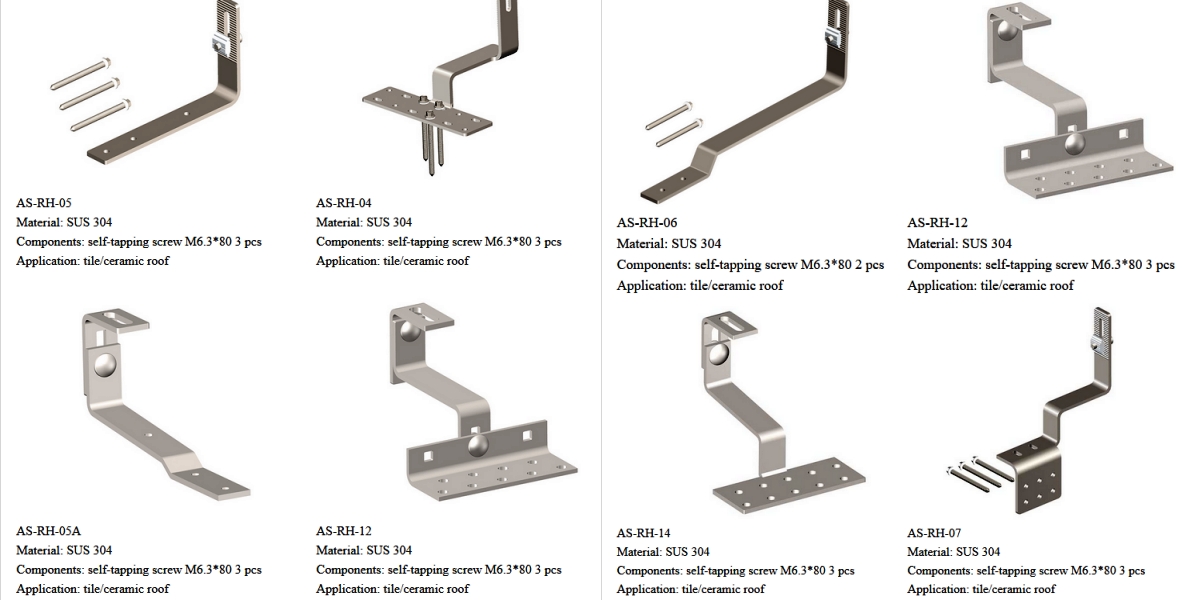

■ Roof tiles and roof stones
We offer roof hooks and rails for almost all clay tiles, pantiles, plain tiles and concrete roof tiles.
■ Corrugated fiber cement and corrugated sheet metal
For corrugated roofing, we offer hanger bolts and solar fasteners.
These are equipped with a seal. The hanger bolts are used for wooden substructures. They are equipped with an adapter plate towhich the rail is attached pre-assembled, of course. We offer different lengths as well as different diameters (M10/M12). For a steel substructure, we use solar fasteners. These are equipped with a hardened drill point.
■ Trapezoidal sheet metal roofing
For the area of trapezoidal sheet metal and sandwich panel roofing, we have various solar fasteners in our range.
These enable the PV mounting system to be fixed in the steel or wooden substructure. The matching calottes in various sizes and colours are also included in the scope of delivery.
■ Metal seam roofing
We offer various clamps for fastening in the field of sheet metal seam roofing and system roofs.
These enable the PV mounting system to be fixed on almost all of the roof coverings. The following profile types are possible:double standing seam, angled seam, snap seam, metal roof systems.
Project Case

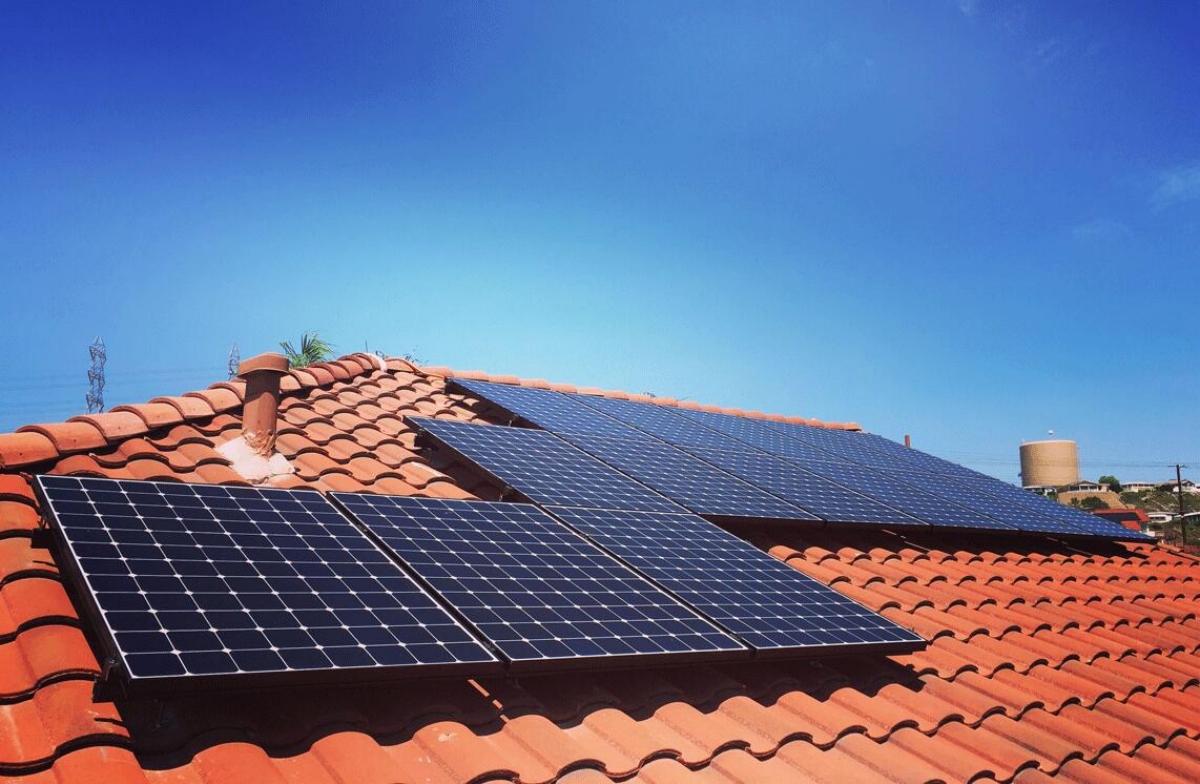

The solar tile roof mounting system features high-quality, durable stainless steel roof hooks designed to suit most types of tiled roofs. Available in various styles, these hooks ensure a secure and adaptable installation, providing excellent stability and weather resistance for long-lasting performance.
view more

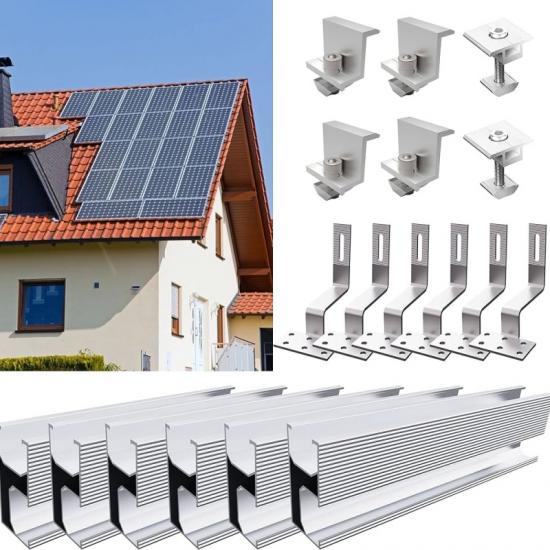

The Hanger Bolt Kit for Tile Roof Solar Installations offers a cost-efficient and practical solution tailored for European tile rooftops. Engineered for long-lasting performance, this PV mounting system ensures simple installation, robust stability, and affordability, making it an ideal choice for both residential and commercial solar energy projects. Designed to meet the increasing demand for solar applications, it provides a reliable and efficient way to secure solar panels on tile roofs.
view more

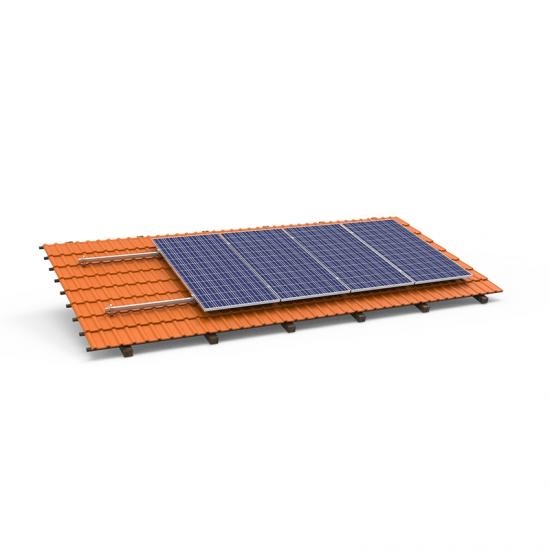

Solar tile roof bracket is designed with great flexibility both for commercial and residential roof solar system.
view more

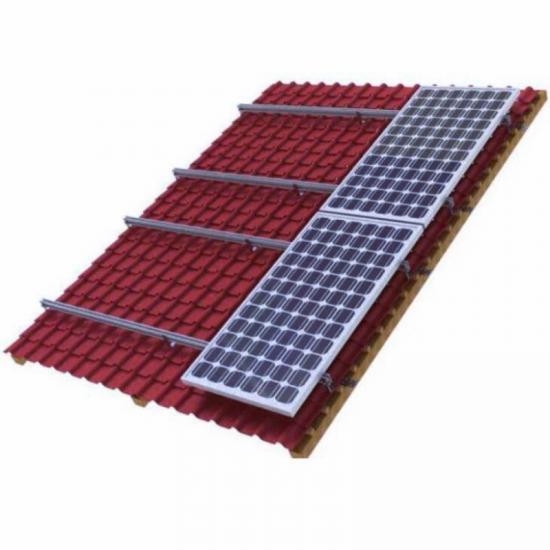

TopFence`s Hanger Bolt and Aluminum Plate Tile Roof Solar Mount System is a anti-leakage, reliable choice for those seeking a cost-effective, durable, and easy-to-install solution for solar energy projects on tile roofs.
view more
Waterproof Solar Carport is applicable for the photovoltaic array system on the open fields.
view more

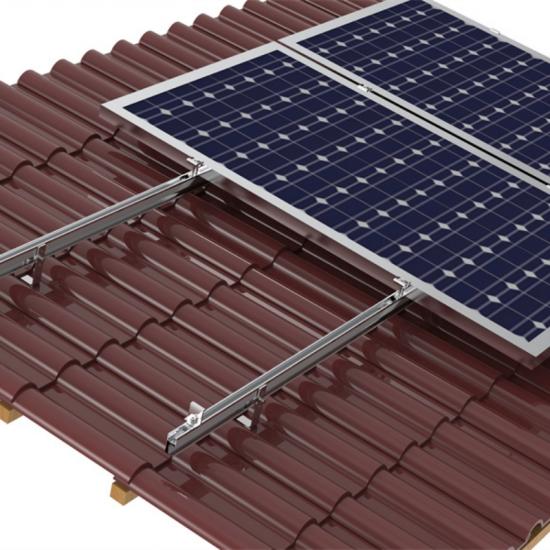

The systems are suitable for most commercially available solar panels and all types of roofs
view more
Product Description Vertical Bifacial solar fencing system is a kind of fence structure with solar panel, it can be used as a fence or farm and also power generation system. Solar fence mounting system is made by steel, it’s durable and high strength. The photovoltaic bifacial module can be installed on the solar fence mounting system, and both sides can generate electricity, it has higher electricity generation efficiency. Solar panel vertical mounting fence can be customized design, we offer free design services and robust customisation. Technical parameters Product Name Solar Fence Mounting System Install Site. Open ground Module orientation: Portrait or Landscape PV array Customized for pv panel stand Max. Wind speed： ≤60 m/s Max. Snow Load: ≤1.5KN/m2 Material Carbon steel Surface Anti-corrosive Treatment Hot-dip galvanizing or aluminum Warranty: 10 years Duration. more than 25 years
