Solar H Connector for Single Pile Ground Mounting System

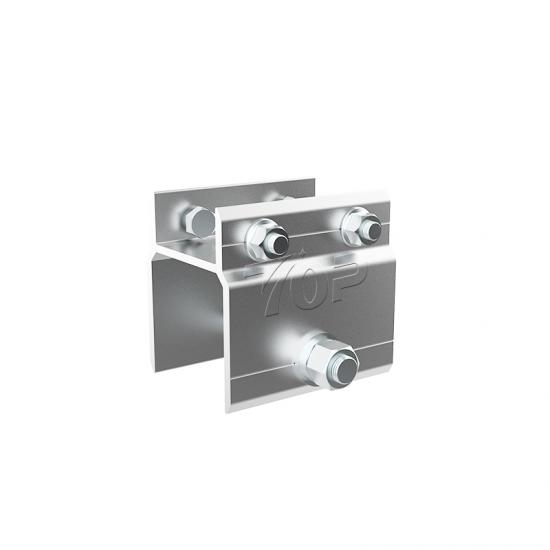

The Solar H Connector, also known as the H bracket, is a key solar accessory specifically designed for connecting aluminum C-channel or Z-shaped (hat) beams to vertical single pile posts in ground-mounted photovoltaic (PV) systems. This solar H connector features a robust H-shaped aluminum alloy structure with anodized surface treatment, offering both high structural integrity and exceptional corrosion resistance.

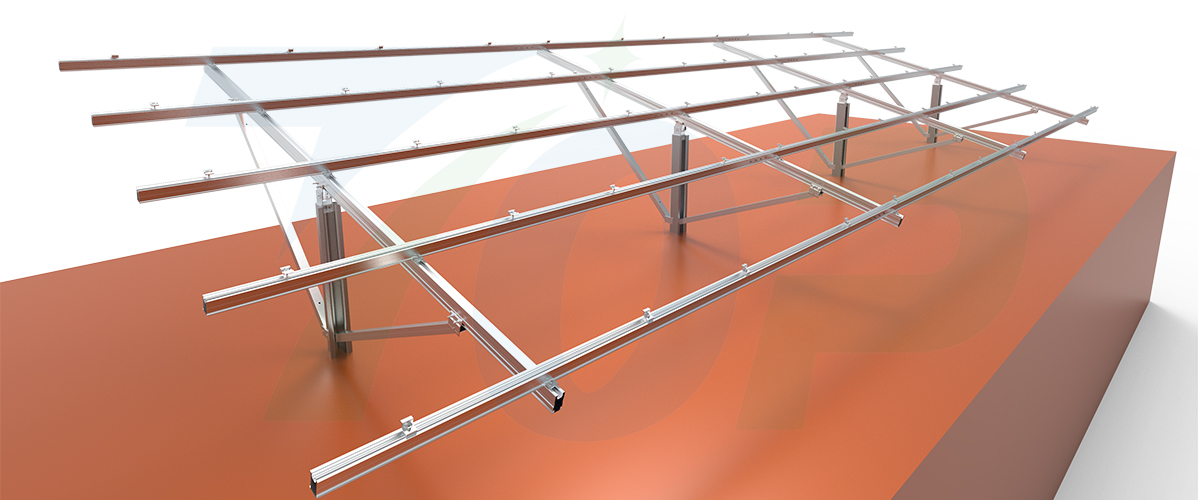

This component is a critical link in the single pile aluminum mounting structure, enabling precise installation and load transfer in solar farms where fast deployment, durability, and long-term performance are required.

Product Specifications

Product Features

Lightweight and Strong
Made of high-strength anodized aluminum, combining low weight with high structural load capacity.

Corrosion-Resistant
The anodized finish ensures long-lasting durability in coastal, humid, and harsh environments.

Modular Design
Fits seamlessly with common aluminum beam profiles, simplifying system assembly.

Versatile Application
Ideal solar accessory for single pile systems in utility-scale and commercial ground-mounted PV installations.

Fast Installation
Pre-drilled bolt holes and precise manufacturing enable fast, secure connections on site.

FAQs

•
  Q1: What is a solar H connector used for?

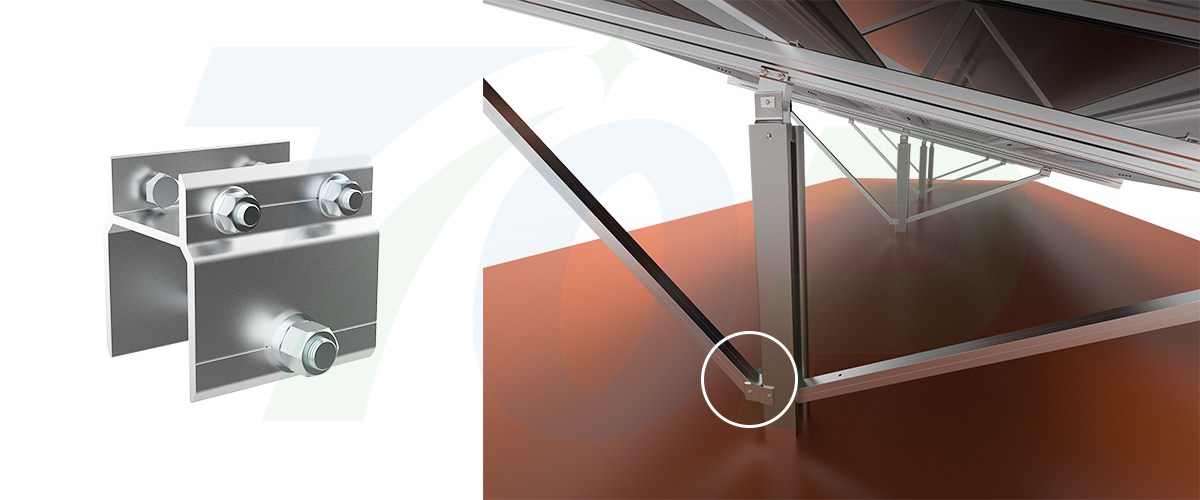

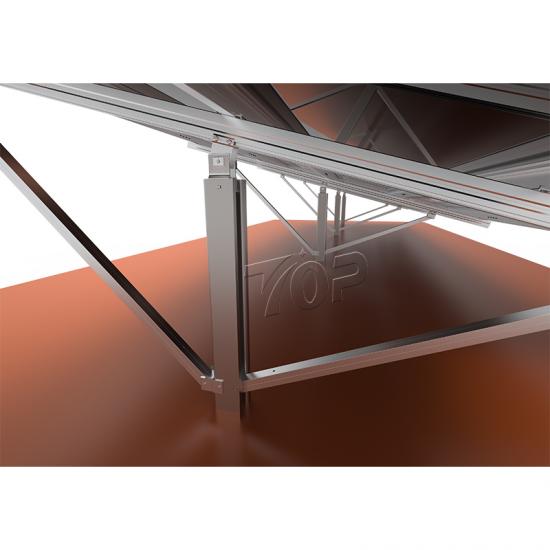

  A: The solar H connector is used to link horizontal mounting rails (beams) to a vertical single pile post in a ground-mounted PV support system. It serves as a structural joint and load-transfer point.

•
  Q2: Is the H bracket compatible with steel beams?

  A: Yes, it is designed to connect with aluminum or galvanized steel beams such as C-channel or hat-shaped profiles.

•
  Q3: Is this product suitable for high-corrosion areas like the coast?

  A: Absolutely. The anodized aluminum alloy provides superior corrosion resistance, making it ideal for coastal or desert environments.

•
  Q4: What fasteners should be used with this solar H connector?

  A: We recommend stainless steel bolts (e.g., SUS304 M8–M12) with washers and nuts for optimal clamping strength and weather durability.

•
  Q5: Can this solar H bracket be customized?

  A: Yes, we support customization in terms of length, hole positions, and anodized color based on your project requirements.
