U Shape Rail-less Solar Roof Mini Rail for Trapezoidal Metal Roof
Category:
Roof Clamp
Keywords:
Roof Clamp
Warranty
10 Years
Certified
ISO 9001
Delivery
7-14Days
Quick Specifications
Aluminum Alloy 6005-T5
1.4KN/m²
AS/NZS 1170, JIS C8955:2017/GB5009-2012
Landscape/Portrait
10 Years
25 Yeras
Specification

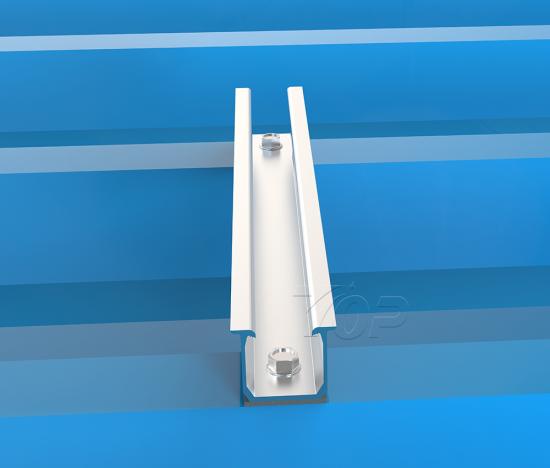

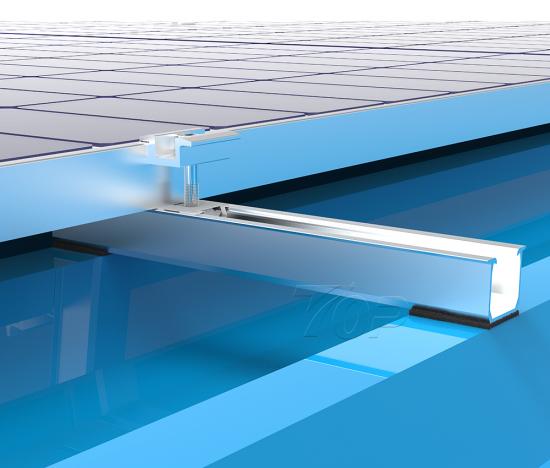

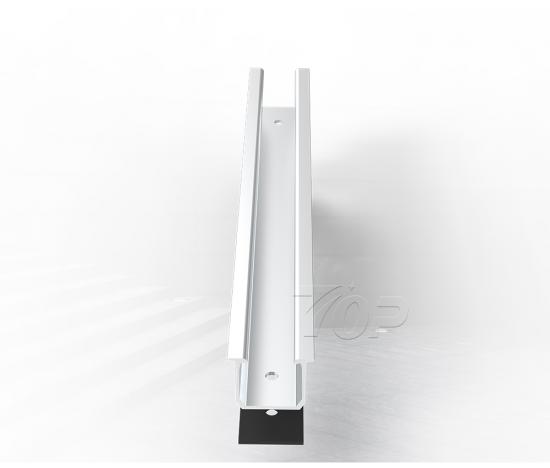

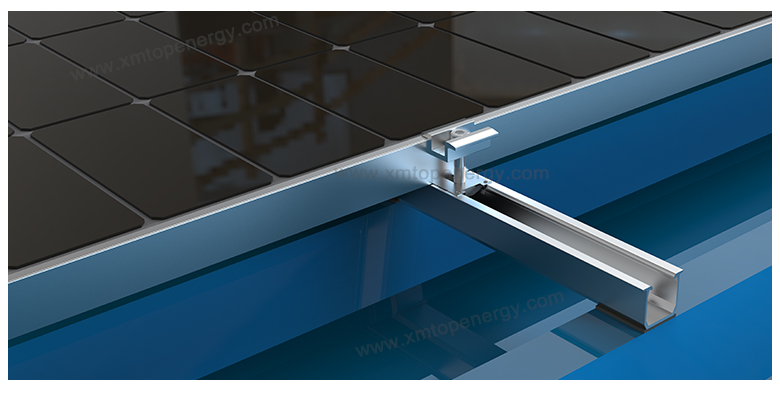

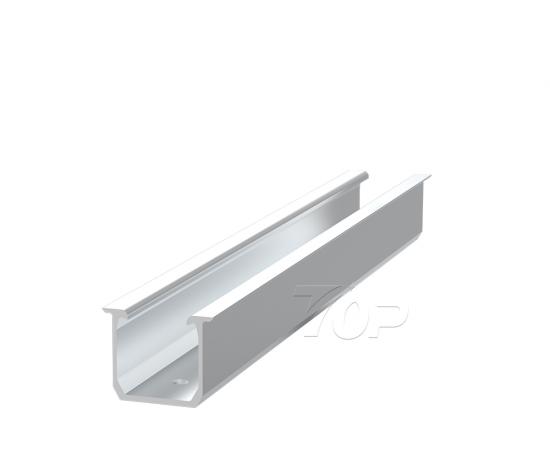

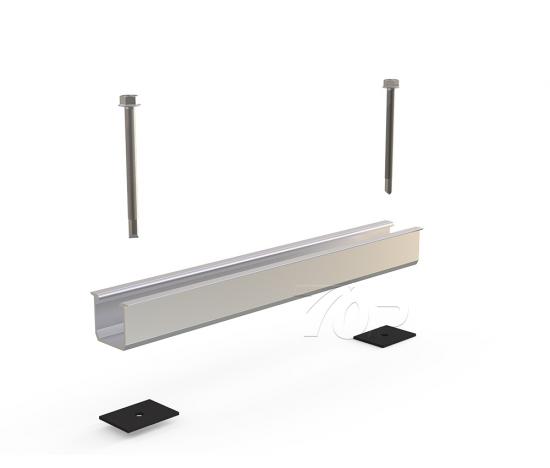

The Trapezoidal Tile Trackless U-Type Clamp is designed for secure and efficient solar panel installation on trapezoidal metal roofs. This clamp is made from high-quality AL6005-T5 aluminum alloy, ensuring durability and excellent corrosion resistance. It eliminates the need for traditional tracks, providing a streamlined installation process. The U-type design provides a secure hold for solar panels while minimizing roof damage. This accessory includes self-tapping screws and EPDM rubber pads for added waterproofing and anti-slip properties.
Product Details
Product Specifications
| Material: | AL6005-T5 aluminum alloy (for the clamp) |
|---|---|
| Weight: | 133g (for a 200mm unit) |
| Dimensions: | 420 x 300 x 165mm (for packaging) |

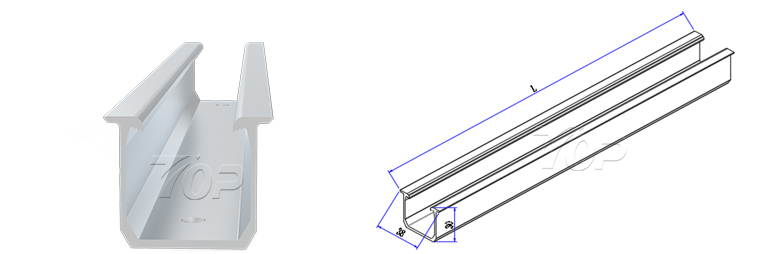

| Clamp Size: | 38mm height |

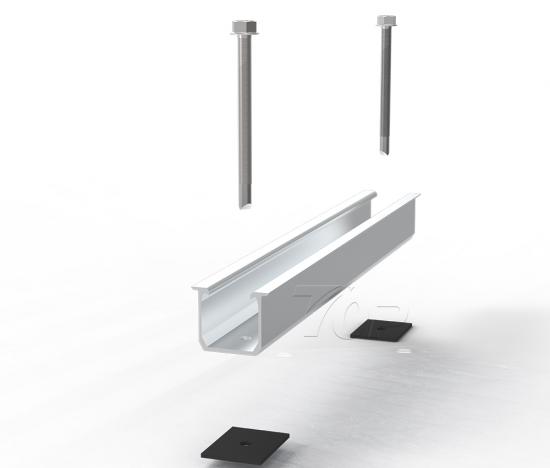

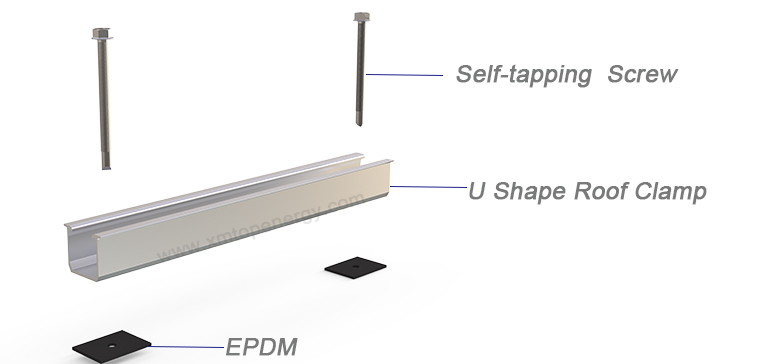

| Installation Method: | Self-tapping screws for easy installation, with EPDM rubber pads for waterproofing and anti-slip function |
| Snow Load: | 1.4KN/M² |
| Wind Load: | 60m/s |
| Warranty: | 10 Years |
| Service Life: | 20+ Years |
Product Features
Trackless Design: No need for traditional rails, simplifying installation and reducing material costs.
Durable Material: Made from high-strength AL6005-T5 aluminum alloy, providing excellent corrosion resistance and longevity.
Waterproof & Anti-Slip: Equipped with EPDM rubber pads that prevent water infiltration and provide anti-slip functionality.
Compact & Lightweight: With a compact design and lightweight construction, it is easy to handle and install, saving time and labor.
Product Features
Cost-Effective
Optimized design reduces material costs while maintaining structural integrity and performance standards.
Lightweight
Aluminum construction minimizes roof load while providing excellent strength-to-weight ratio.
Quick Installation
Pre-assembled components and intuitive design enable faster deployment and reduced labor costs.
Universal Compatibility
Adaptable to various metal roof profiles including standing seam and trapezoidal sheets.
Why Choose Our System?
01
Cost-Effective
Optimized design reduces material costs while maintaining structural integrity and performance standards.
02
Lightweight
Aluminum construction minimizes roof load while providing excellent strength-to-weight ratio.
03
Quick Installation
Pre-assembled components and intuitive design enable faster deployment and reduced labor costs.
04
Universal Compatibility
Adaptable to various metal roof profiles including standing seam and trapezoidal sheets.
