Black Aluminum Solar Carport Structures Manufacture

Cement pier solar carport is the simplest way to combine photovoltaic and architecture.

  • Material:

    Aluminum Alloy 6005-T5
  • Snow Load:

    1.4KN/m²
  • Wind Load:

    60m/s
  • Standard:

    AS/NZS 1170, JIS C8955:2017/GB5009-2012
  • Certification:

    SGS/CE
  • Tilt Angle:

    5~10deg
  • Panel Orientation:

    Portrait/Landscape
  • Warranty:

    10 Years
  • Service Life:

    25 Years

Black Aluminum Solar Carport Structures Manufacture


.Overview

Cement pier solar carport is the simplest way to combine photovoltaic and architecture. PV carport has the characteristics of good heat absorption, easy installation, low cost, high reliability, long service life, no environmental pollution, independent power generation and on grid operation. It not only can make full use of the original site, but also can provide green energy. Geographically it can not only build solar carports in commercial environments such as factory parks, commercial areas, hospitals and schools, but solar garages for 1-2 cars that meet residential needs.


.Product Details



Product Name: Residential Solar Carport Structures
Material: Aluminum Alloy
Max Wind Load: 60 m/s
Max Snow Load: 1.4 KN/M²
Module Orientation: Portrait or Landscape
Certification: SGS, CE
Warranty: 10 Years
Service Life: 25 Years

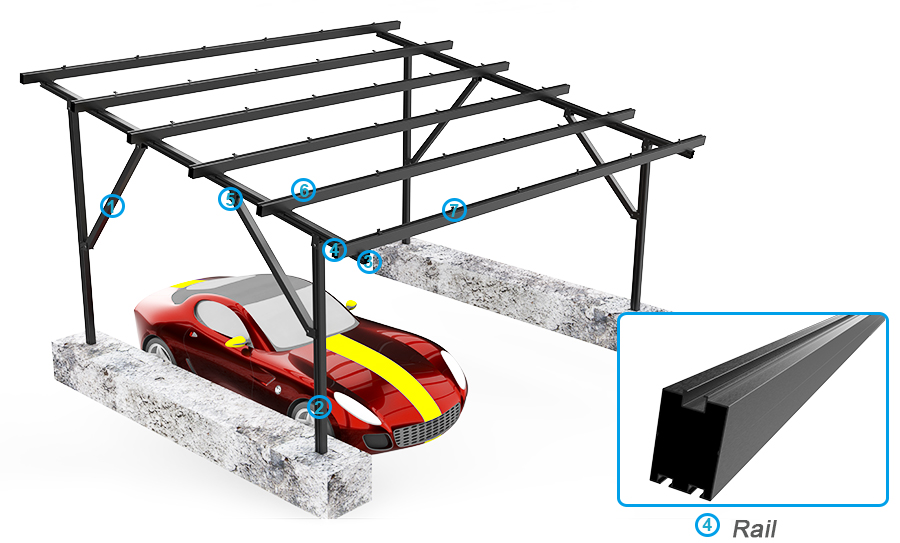

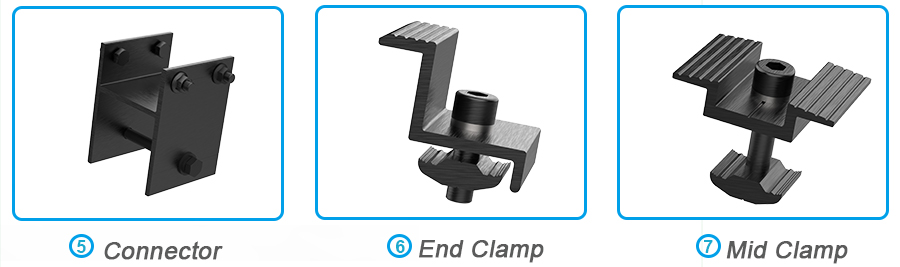

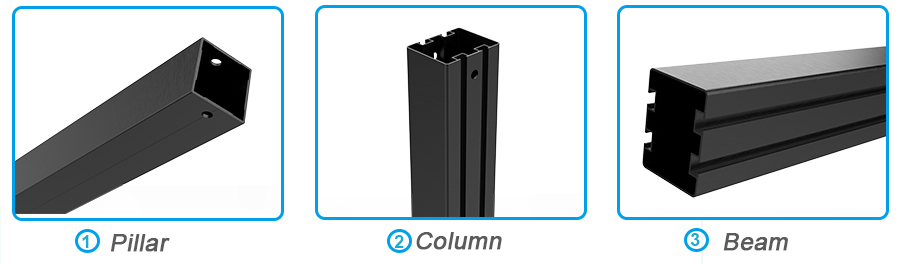

Solar Components: Solar Rail, Pillar, Column, Beam, Connector, End Clamp, Mid Clamp and etc.



The features of solar carport:

1)Made of aluminum alloy material, high corrosion resistance,Light weight, easy to install

2)Photovoltaic carport does not have any requirement restriction on site area, large installed capacity, high return rate and short payback period.

3) Effectively shield the car from sunlight and rain, avoid exposure to the sun, and solve the problem of high temperature inside the car in summer.

4) Chargeable parking lots can use PV carports to realize revenue again on the basis of parking fees.

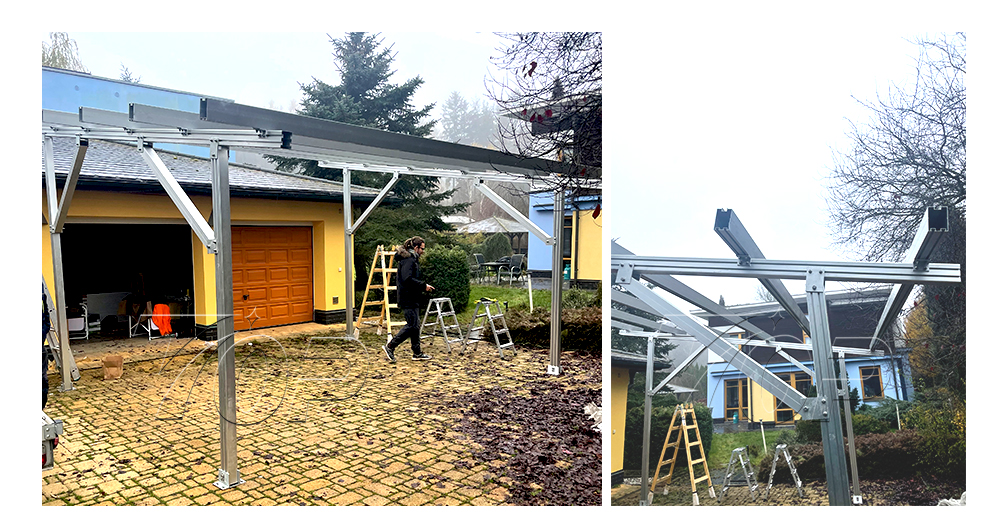

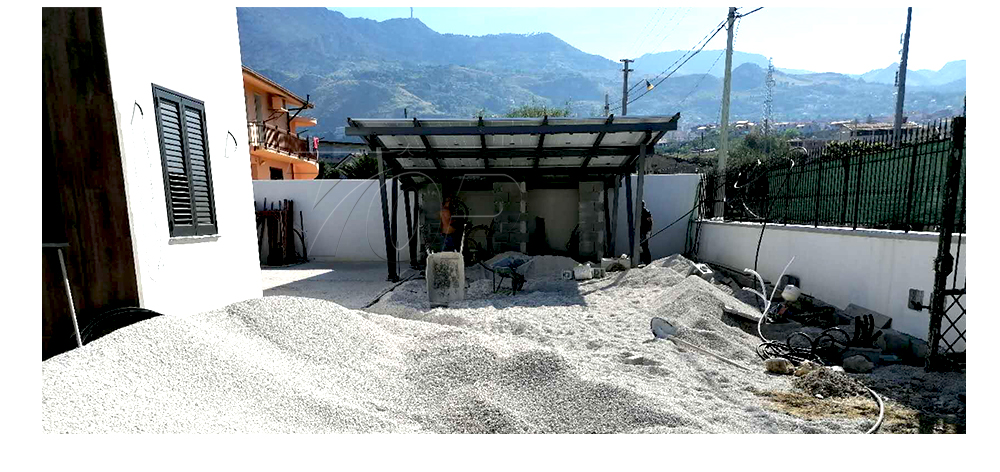

.Projects

solar mounting system

solar mount
