The Overlooked Essentials of Rooftop Solar Systems: Beyond Panels and Mounting Structures

When we talk about rooftop solar systems, most people immediately think of solar panels and the supporting mounting structures. However, a truly reliable and efficient solar PV system involves much more. From bird deterrents and electrical systems to structural integrity and compliance with local regulations, every detail counts.

In this post, we’ll explore the often-overlooked but critical components and considerations that go into building a safe, durable, and long-lasting rooftop solar installation.

1. Solar Panels and Mounting Structures: The Foundation

Solar panels and their mounting systems form the core of any rooftop PV system. The panels capture sunlight, and the mounting structures secure them to the roof. But their effectiveness depends heavily on several finer points:

Correct tilt angle and orientation for maximum output

Appropriate mounting for roof type (metal, tile, flat concrete, etc.)

Wind load and uplift resistance

Corrosion resistance and weatherproofing (e.g., hot-dip galvanized steel)

2. Bird Netting: A Small Detail with Big Impact

Birds nesting under solar panels can cause significant issues:

Droppings that reduce panel efficiency

Nesting materials that present fire risks

Damage to cables and panel backsheets

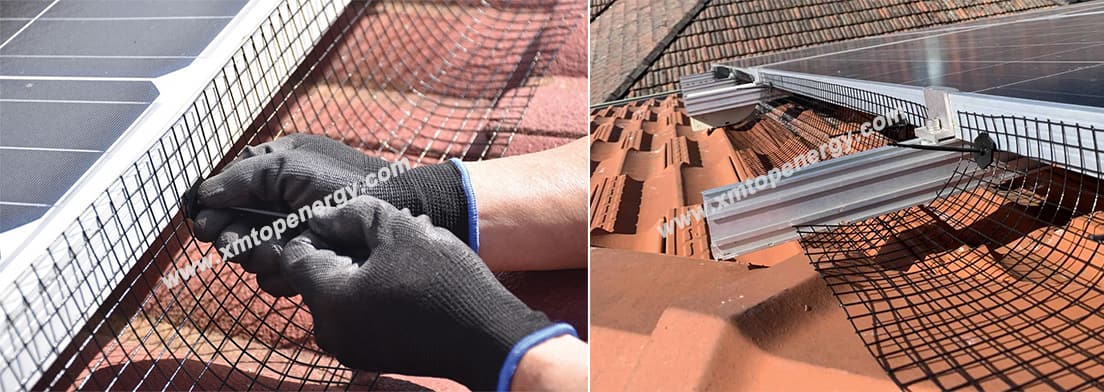

Installing UV-resistant bird mesh or netting can effectively prevent these problems. However, care must be taken to ensure the netting:

Doesn’t restrict airflow under panels

Doesn’t apply stress to the solar mounting structures

Is made from durable, weather-resistant materials

3. Electrical Systems: The Nerve Center of Your Solar Setup

The performance and safety of your system hinge on a well-designed electrical setup. Key considerations include:

Proper cable management: Secure routing using stainless steel cable ties or UV-resistant plastic ties

Cable trays: Preferably made of FRP or stainless steel, with protective covers

Grounding and lightning protection: Essential for safety and regulatory compliance

Waterproofing of junctions: Use of sealed glands and conduits for roof penetrations

4. Structural & Protective Measures: Safety First

Solar systems add weight and wind load to the roof. It’s critical to assess:

Roof load capacity: Can it bear the added weight of panels, racking, and wind uplift?

Thermal expansion: Long rails need expansion joints to prevent buckling

Corrosion control: All cut edges should be treated to maintain anti-corrosion performance

Fixings and fasteners: Must be compatible with roof material to prevent leaks

5. Installation & Long-Term Maintenance

A good installation isn’t just about putting panels on a roof; it’s about long-term serviceability:

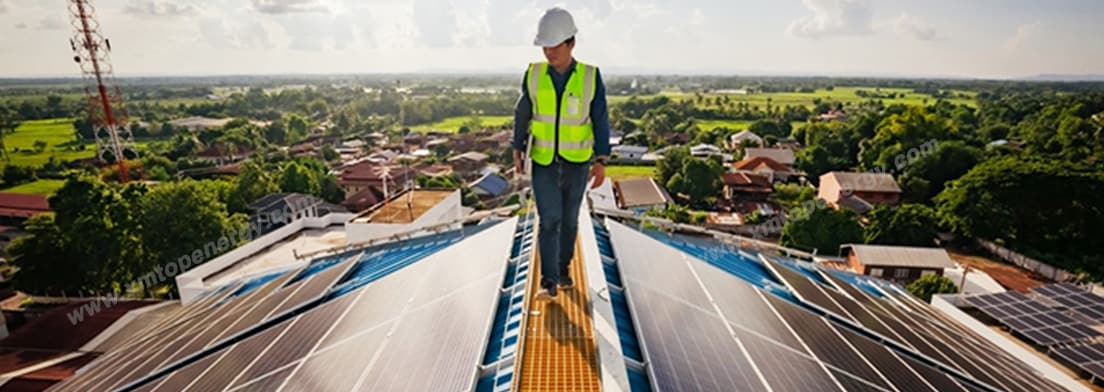

Access paths: FRP walkways or maintenance aisles are essential for safe inspection and cleaning

Drainage planning: Ensure water does not accumulate around panels

Animal-proofing: In addition to birds, protect the system from rodents and insects

Replaceability: Ensure that individual components (e.g., a single panel or cable) can be replaced without dismantling the entire system

6. Environmental & Regulatory Compliance

Local regulations and environmental factors must be factored into the design:

Fire safety standards: Cable insulation and components must meet fire resistance requirements

Building aesthetics and approvals: Especially in residential or historic districts

System insurance: Protection against natural disasters, theft, or damage

Product warranties: Ensure panels and structural components come with 10+ year warranties

Conclusion

A rooftop solar PV system is more than just panels and brackets. Attention to detail in electrical layout, structural safety, pest prevention, and regulatory compliance can make the difference between a system that merely functions and one that excels for 25 years or more.

Whether you're a project developer, installer, or end-user, understanding these often-overlooked elements will help ensure your solar investment is safe, efficient, and future-proof.
