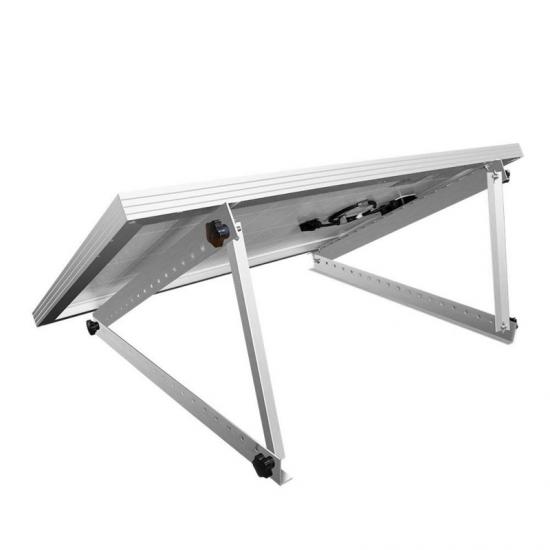

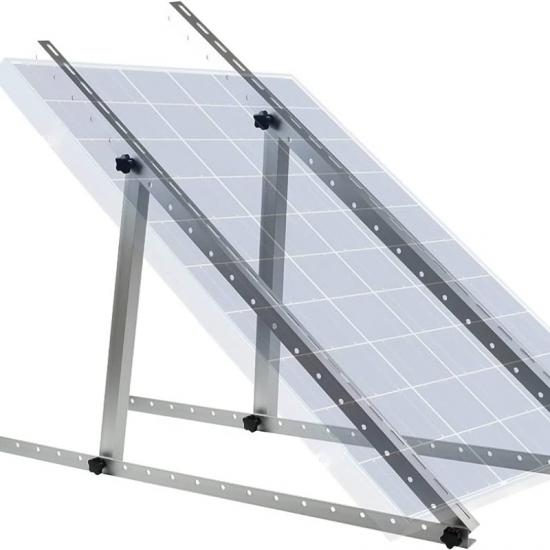

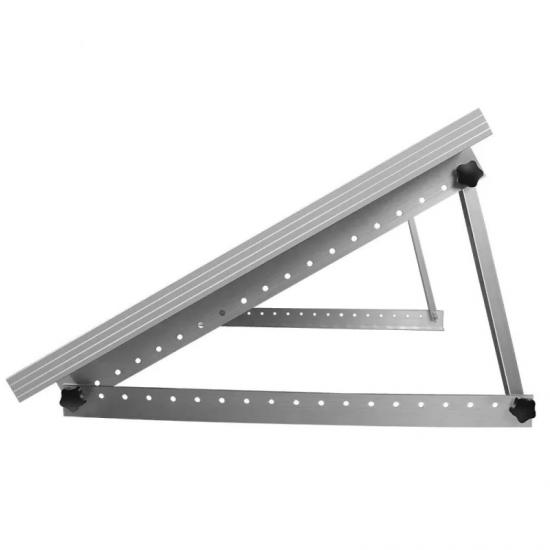

Triangle Mounting Bracket

The Triangle Mounting Bracket is a type of mounting system designed for metal roof.

Material:
AL 6005-T5 and SUS 304
Length:
Customized
Width:
Customized
Wind Load:
up to 60m/s
Snow Load:
up to 1.4KN/㎡
Origin:
Xiamen
Tilt Angle:
10-60 Degrees
Specification:
Customized

Inquire now

Product Details

The Triangle Mounting Bracket is a type of mounting system designed for metal roof. It uses triangular-shaped brackets that are attached to the metal roof using screws or other fasteners. The solar panels are then attached to the brackets, providing a secure and stable foundation for the solar panels. Triangle roof mounting system is an effective and efficient solution for metal rooftop solar panel installations that require stability and security without the need for roof penetration.

Features
Applicable to metal roof and concrete flat roof
Easy and quick installed by using our bolts and nuts
Suitable for installing framed and frameless modules
Pre-assembled Components Save Onsite Installation Time

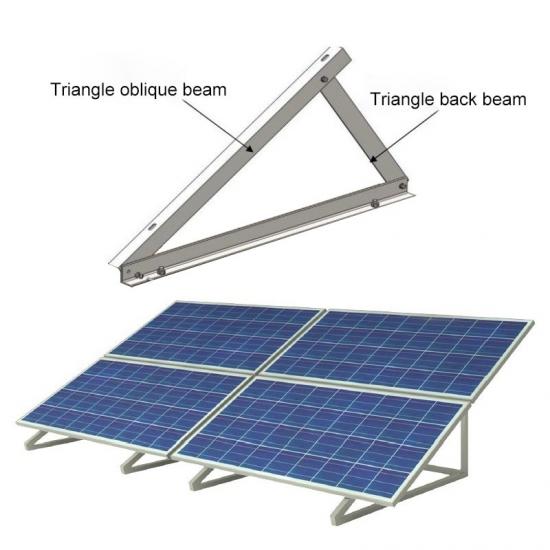

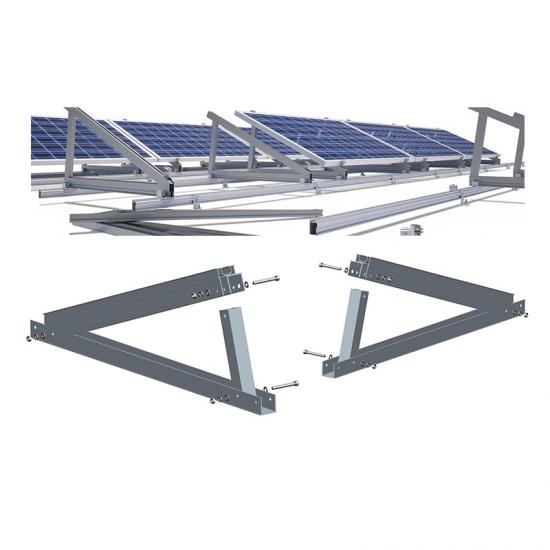

Components Parts

Parameters

Color	Silver
Service life	25 Years
Surface Treatment	Anodized
Waterproof	100% waterproof
Max.Building Height	Up To 65Ft (22M),Customized Available
Module Orientation	Portrait or Landscape
Components Parts	Mid Clamp; End Clamp; Triangle Frame; Triangle Fixing Components; Ballasted Support Frame

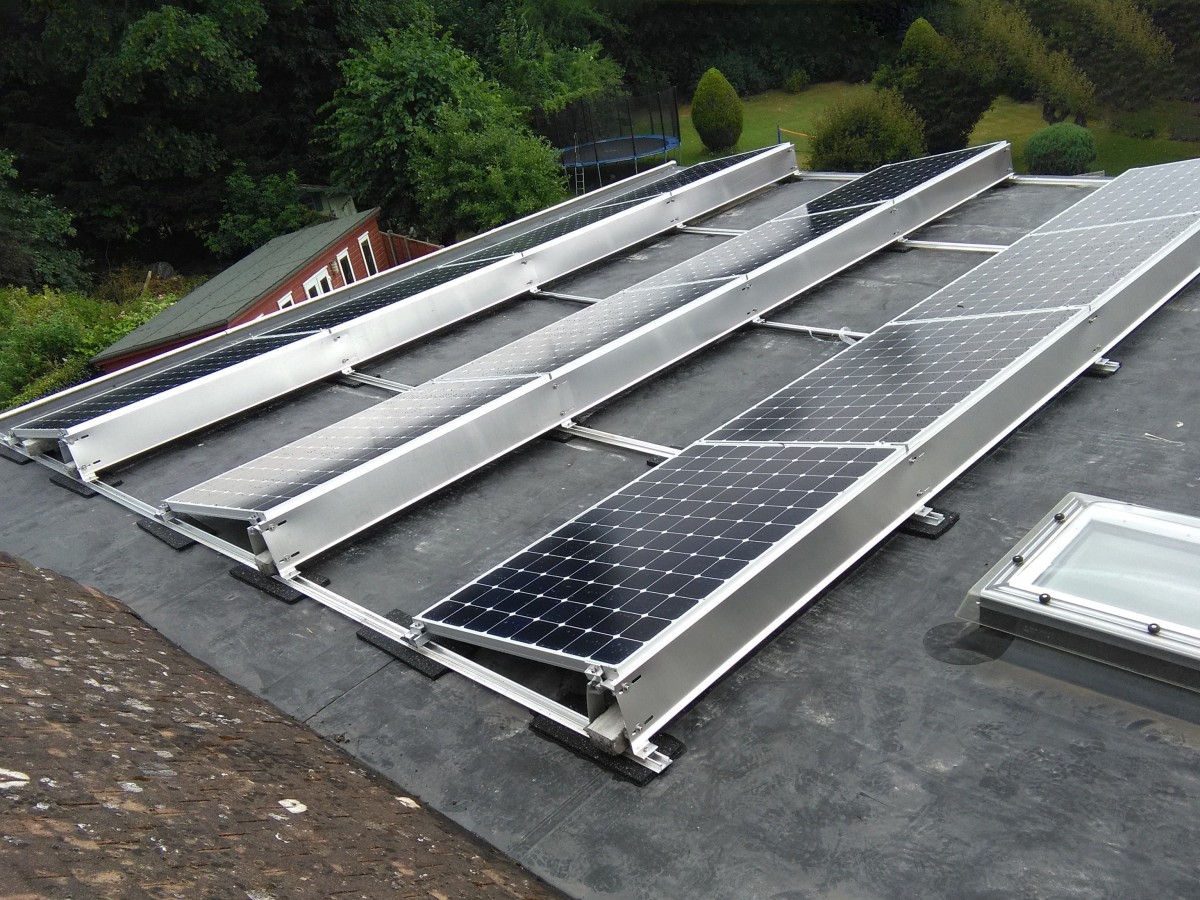

Projects Applications
