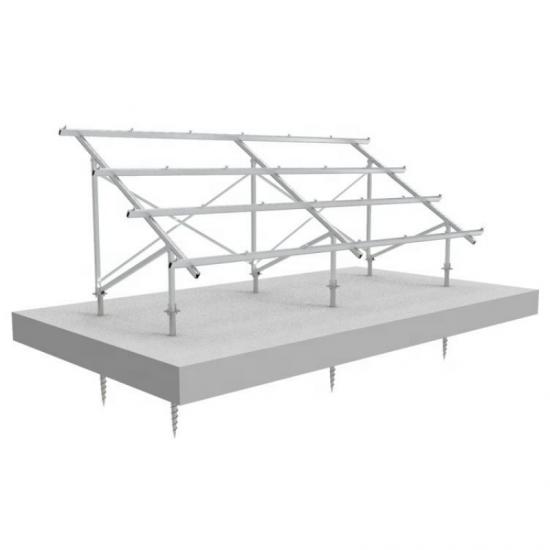

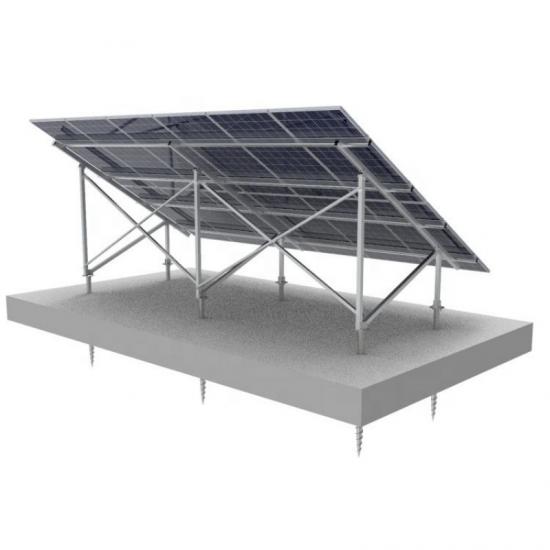

Solar ground mounting racking

The main material of the Solar ground mounting racking is high-purity aluminum alloy, which is light in weight, pre-assembled components are simple structural design, effectively reducing the onsite cost.

  • Material:

    AL6005-T5 & SUS304
  • Snow Load:

    1.4 KN/m2
  • Wind Load:

    Up to 42m/s
  • Standard:

    Normal
  • Certification:

    ISO
  • Tilt Angle:

    0°- 45°
  • Panel Orientation:

    Customized
  • Warranty:

    10 Years
  • Service Life:

    25years
  • Shipping Port:

    Xiamen Port

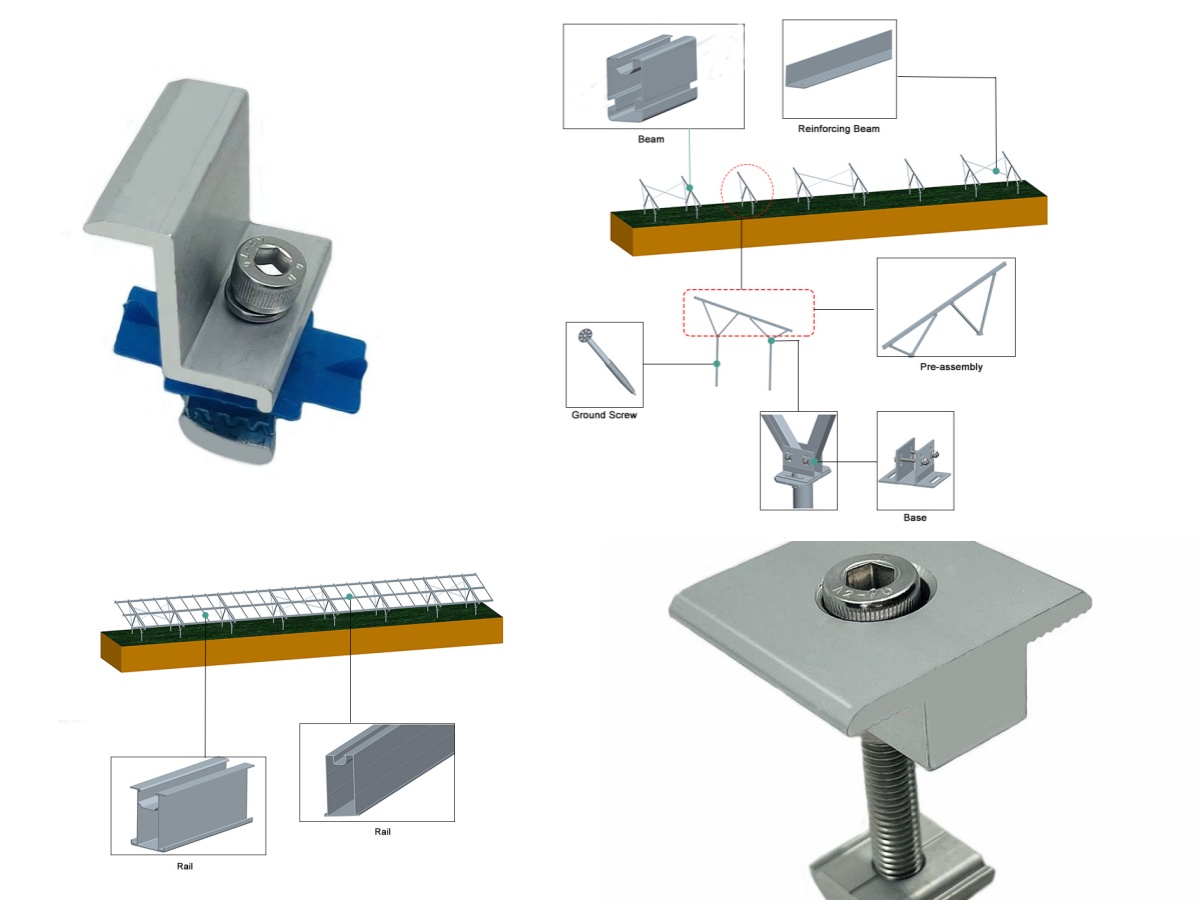

The main material of the Solar ground mounting racking-N type is high-purity aluminum alloy, which is light in weight, pre-assembled components are simple structural design, effectively reducing the onsite cost. The support surface is anodized, with high corrosion resistance. The ground system with ground screws foundation has strong environmental adaptability and can be widely used in power station solar ground projects in different terrains. High pre-assembly reduces on-site installation difficulties encountered.









Advantages:

① Easy Installation

The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.



② Flexible and Stable

The Solar ground mounting racking-N type, with its fully adjustable design, maximally absorbs the size error caused by the construction, and guarantees the stability and beauty of PV matrix structure.



③High Accuracy of Construction

The use of the corresponding color markers achieves a simple and effective installation guidance that can to much extent replaces installation instruction and reduces the construction error rate.



④Extraordinarily Environment-friendly Performance

All materials can be 100% recycled, and no waste is generated, which fully embodies the concept of energy saving and environmental protection of solar photovoltaic power generating system.



⑤Superb Quality

All raw materials of components are made of aluminum (anodized 6005-T5) and stainless steel (SUS304), which reach the maximum degree of product's weather resistance and the stability of the structure. The Solar ground mounting racking-N type, through reliable mechanical analysis and static load test, combines the theory and practice-related data to ensure stability and safety performance of the structure.



⑥Range of Application

Inconsideration of various factors like stability and economy of installation, we suggest you choose Solar ground mounting racking-N type when there quire mentis ground clearance over 0.6m, horizontally less than 3 sections and vertically less than 2 sections.

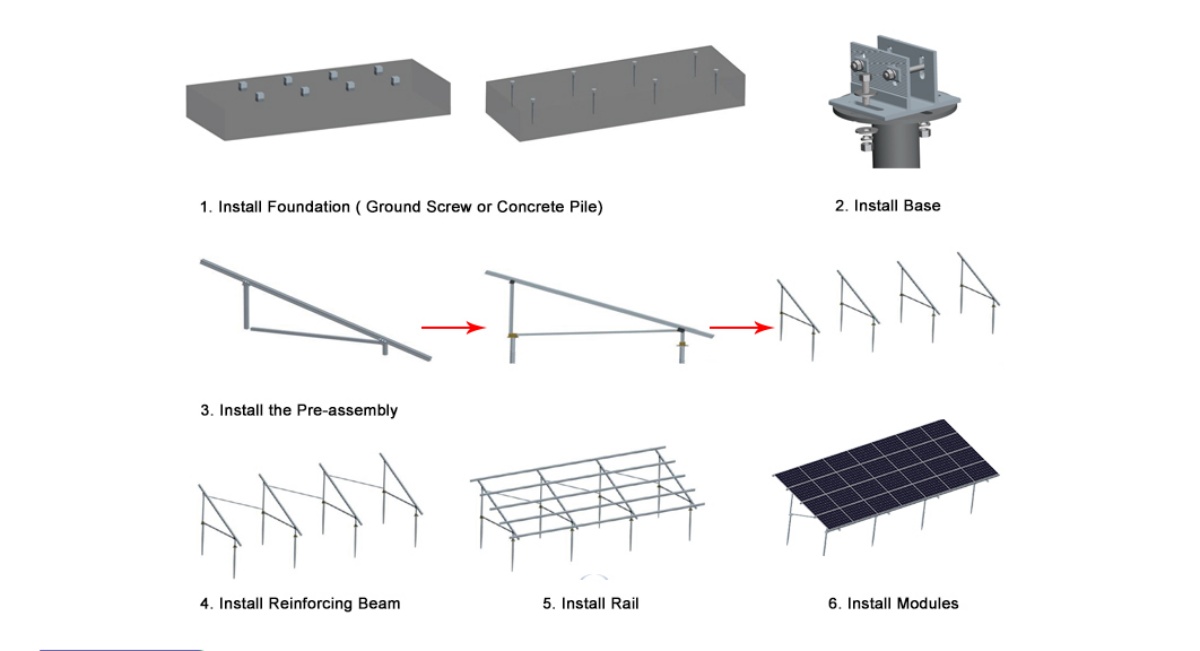

lnstallation Steps

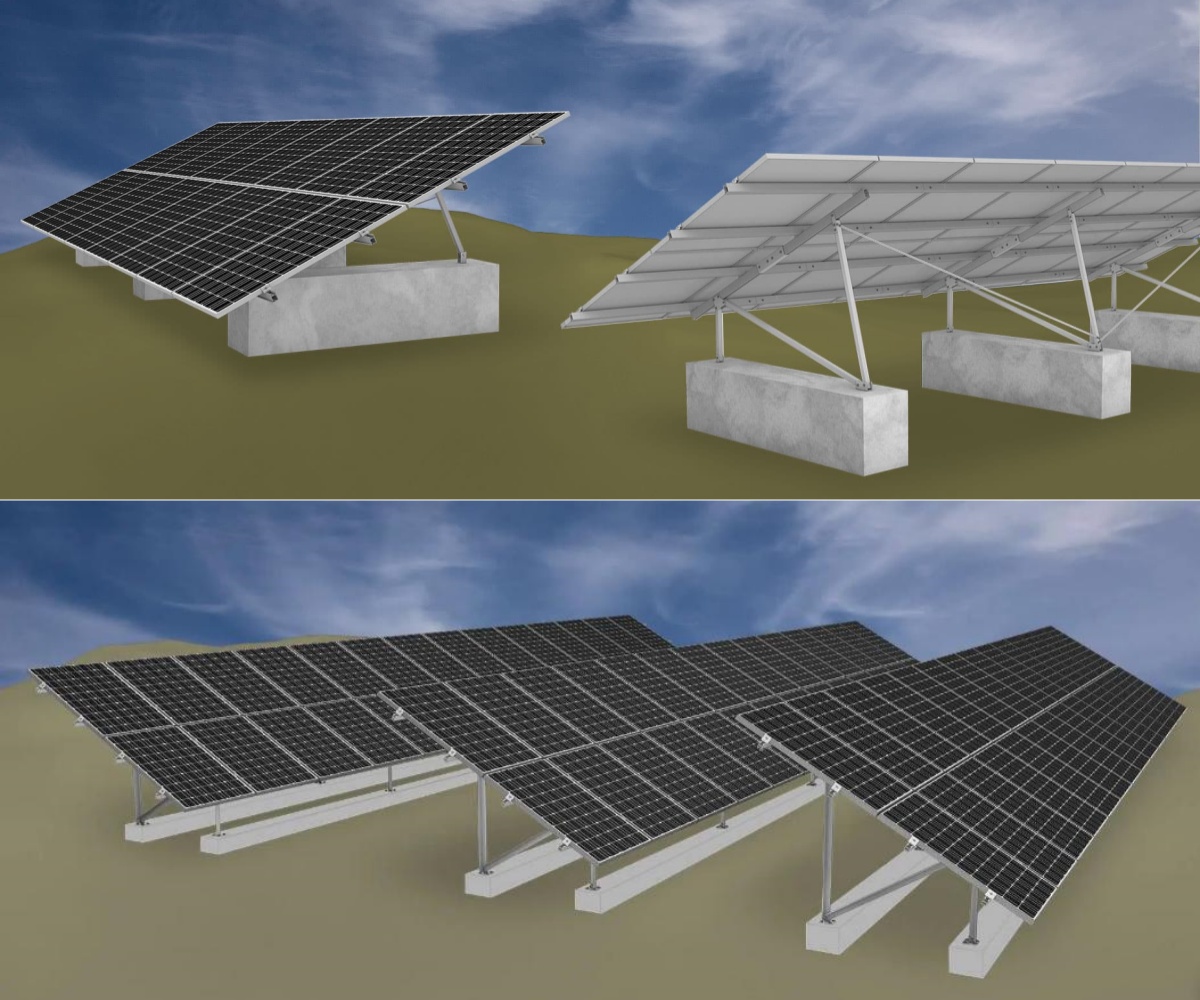

Applications
