Modular Galvanized Steel Solar Carport For CommercialParking Lots
Category:
Solar Carport
Keywords:
Solar Carport
Warranty
10 Years
Certified
ISO 9001
Delivery
7-14Days
Quick Specifications
Hot Dipped Galvanized
1.4KN/㎡
60M/S
5-20°
Portrait, Landscape
10 Years
More than 20 Years
Specification
Product Details
The HDG Steel Solar Carport Structure is a durable, aesthetically pleasing solution for residential, commercial, and industrial solar parking needs. Made from hot-dip galvanized (HDG) carbon steel, this carport offers exceptional structural strength, long-term corrosion resistance, and cost efficiency.
Compared to aluminum alloy carports, Hot-Dip Galvanized Carport are significantly heavier, which translates to superior stability in high-wind or snow-prone regions. While aluminum solar carports offer a lighter frame and a sleek appearance, our HDG steel carport combines industrial-grade strength with a modern, clean design that enhances the overall look of any parking area.
The surface of the HDG steel is treated with a zinc coating through a hot-dip galvanization process, ensuring a lifespan of over 20 years with minimal maintenance, even in coastal or highly humid environments.
Product Details
Product Specifications
| Product Name: | HDG Steel Carport Structure | Snow Load: | 1.4KN/㎡ |
| Matrial: | Carbon Steel Q235B/SCS440 | Wind Load: | 60M/S |
| Surface Treatment: | Hot Dipped Galvanized | Panel Orientation: | Portrait, Landscape |
| Warranty: | 10 Years | Service Life: | More than 20 Years |
Product Features
Robust Construction: Manufactured from high-tensile carbon steel with hot-dip galvanized surface treatment for rust and corrosion resistance.
Attractive Appearance: Streamlined design with optional powder coating for enhanced visual appeal.
High Load Capacity: Designed to withstand heavy snow loads, strong winds, and seismic activity.
Versatile Applications: Suitable for single-row, double-row, or customized layouts in commercial or residential settings.
Easy Installation: Modular design reduces on-site construction time and labor costs.
Cost-Effective: More economical than aluminum alloy structures while offering higher mechanical strength.
Sustainable Design: Supports solar PV systems for clean, renewable energy generation.

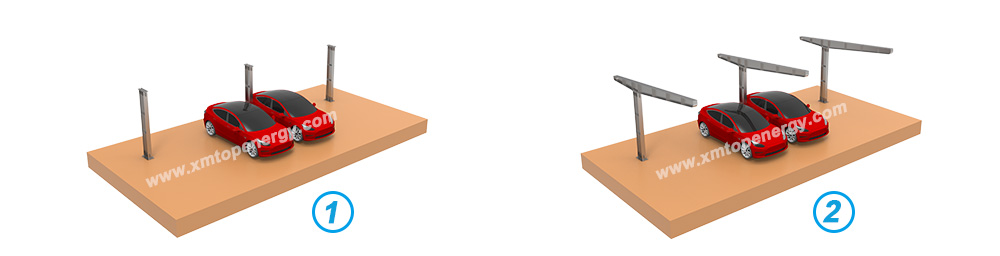

Product Installation
Need the following information to design:
1) Solar Panel:
Length=_____mm, Width:____mm, Thickness:_____mm, power:____W
Panel array: row=____, column=______
Portrait or Landscape?
2) Material: Aluminum or carbon steel
3) Tilt angle for Structure: ____°
4) Max wind speed=___ m/s
5) Snow load=___kn/m2 or Height of snow=___cm
6) Ground clearance: _____mm (Distance between ground and the lowest of bracket)
Product Features
Cost-Effective
Optimized design reduces material costs while maintaining structural integrity and performance standards.
Lightweight
Aluminum construction minimizes roof load while providing excellent strength-to-weight ratio.
Quick Installation
Pre-assembled components and intuitive design enable faster deployment and reduced labor costs.
Universal Compatibility
Adaptable to various metal roof profiles including standing seam and trapezoidal sheets.
Why Choose Our System?
01
Cost-Effective
Optimized design reduces material costs while maintaining structural integrity and performance standards.
02
Lightweight
Aluminum construction minimizes roof load while providing excellent strength-to-weight ratio.
03
Quick Installation
Pre-assembled components and intuitive design enable faster deployment and reduced labor costs.
04
Universal Compatibility
Adaptable to various metal roof profiles including standing seam and trapezoidal sheets.
