Four Blades Ground Screw Helical Pile
Category:
Ground Screw
Keywords:
Ground Screw
Warranty
10 Years
Certified
ISO 9001
Delivery
7-14Days
Quick Specifications
Q235B
Hot Dipped Galvanized
76mm
3~3.5mm
200~220mm
600~3000mm
Solar Ground Mounting Systems /Fences/ Decks /Temporary Structures/ Carports /Pergolas /Houses
Specification
Product Details
Overview

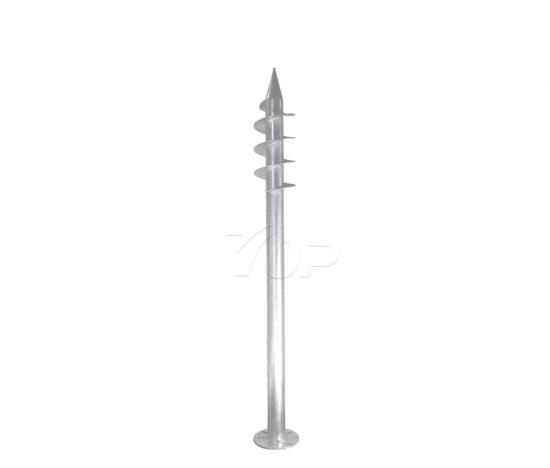

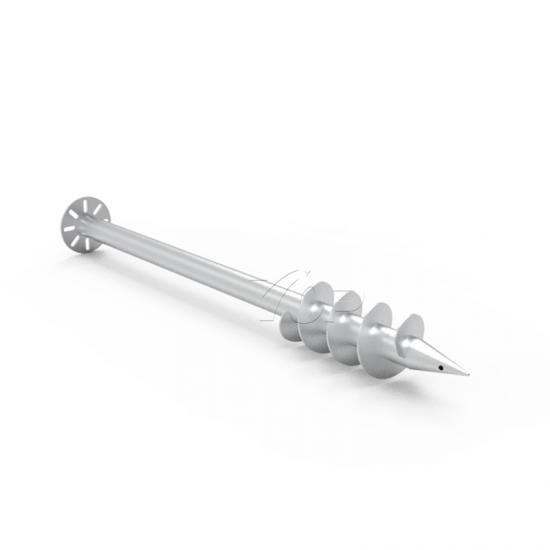

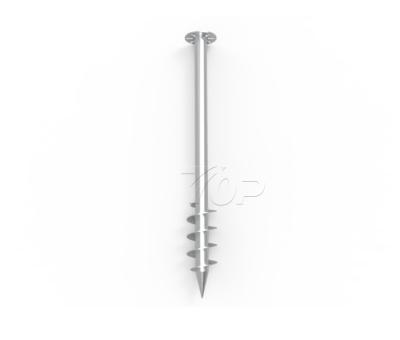

The solar ground screw is a high-strength foundation solution made from hot-dipped galvanized steel, ensuring exceptional durability and corrosion resistance. This earth screw consists of a drill bit, drill pipe, and four precision-engineered spiral blades, designed to provide superior load-bearing capacity for various applications, including solar panel installations.
The ground screw anchors are engineered with carefully spaced spiral blades, where the blade spacing ratio (blade spacing/blade diameter) significantly impacts the pile’s ultimate uplift and compressive strength. Experimental studies indicate that when the blade spacing ratio (S/D) is between 3 and 4, the pile demonstrates optimal bearing performance. Furthermore, the tensile and compressive strength of the Galvanized Ground Screw Pile increases in direct proportion to the square of the blade diameter, ensuring a stable and reliable foundation.
Compared to conventional concrete piles, solar ground screws offer a fracture-resistant design, preventing structural failures during installation. Additionally, these helical piles provide superior load-bearing capacity, making them a more efficient alternative to traditional foundation solutions. With a lifespan of 40 to 80 years, they ensure long-term stability and reliability in demanding environments.

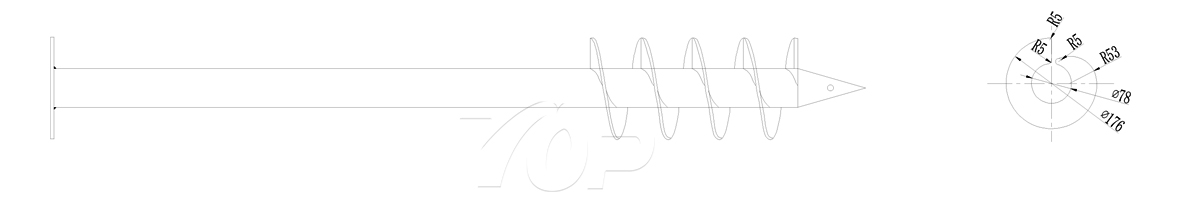

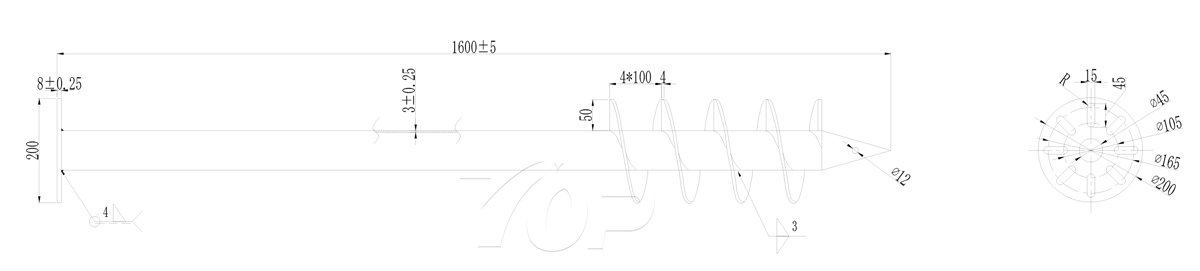

Product Specifications
| Product Name: | Four Blades Screw Pile,Ground Screw Pile |
| Material: | Hot Dipped Galvanized Steel |
| Outer Diameter: | 76 mm |
| Thickness: | 3-3.5 mm |
| Length: | 1000-3000 mm |
| Flange Diameter: | 200 mm & 220 mm |
| Warranty: | 10 Years |
| Service Life: | 25 Years |
| Standard: | DIN EN ISO 1461 |
| Application: | Wooden House, Solar, Fence, Wooden Strestle, Garden and etc. |
Key Benefits of Earth Screw Piles for Solar Applications
Rapid and Effortless Installation
Requires fewer machines, reducing labor time and costs.
No need for excavation or curing time like cement piles.
Eco-Friendly and Low-Impact Solution
Reduces the carbon footprint by eliminating the need for heavy construction.
No soil displacement, minimizing environmental disruption.
Versatile and Adaptive Design
Can be installed in close proximity to existing structures without causing damage.
Suitable for a wide range of soil types, including rocky or sandy terrains.
Easy Removal and Reusability
Can be efficiently removed when no longer needed, leaving minimal impact on the site.

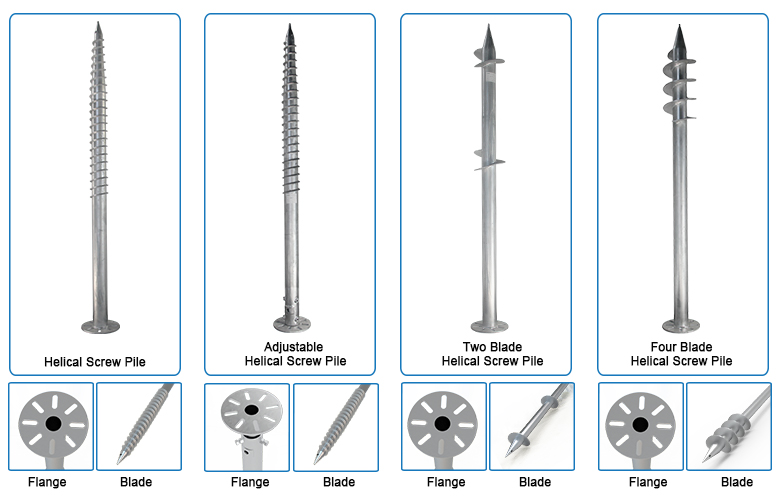

Helical Screw Pile Series
The following are the most commonly used series of spiral ground piles in the world, side by side, to better understand the differents.

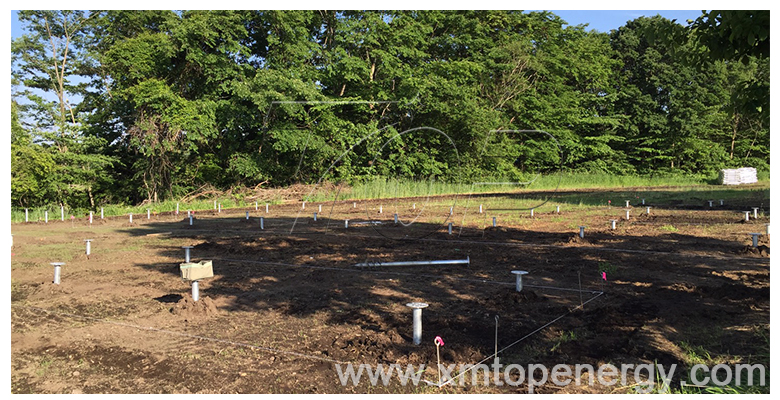

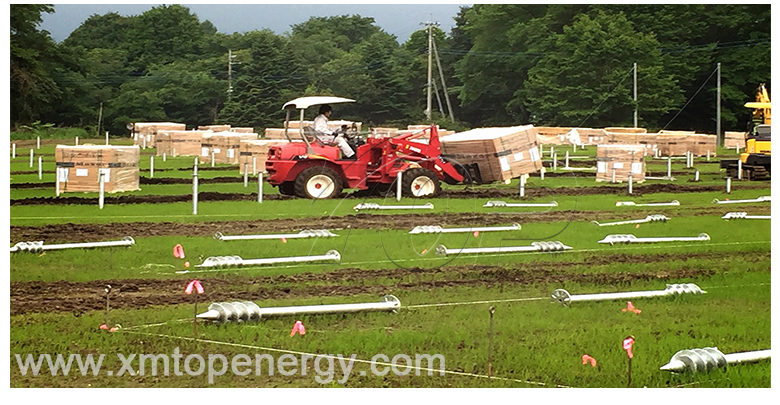

Projects
Product Features
Cost-Effective
Optimized design reduces material costs while maintaining structural integrity and performance standards.
Lightweight
Aluminum construction minimizes roof load while providing excellent strength-to-weight ratio.
Quick Installation
Pre-assembled components and intuitive design enable faster deployment and reduced labor costs.
Universal Compatibility
Adaptable to various metal roof profiles including standing seam and trapezoidal sheets.
